SFF-8087 to SFF-8643 Interface Guide: Complete Overview for Server Storage Systems

Introduction

As enterprise storage systems continue to evolve, Mini SAS interfaces remain a critical component in server and RAID infrastructure. Two of the most common internal SAS connectors are SFF-8087 and SFF-8643.

This guide explains the differences, compatibility, performance, and deployment scenarios of SFF-8087 to SFF-8643 connections in modern storage servers. SFF-8087 is the traditional internal Mini SAS connector, while SFF-8643 (Mini SAS HD) offers higher density and improved signal integrity for SAS 12G environments.

What Is SFF-8087?

SFF-8087 is an internal Mini SAS connector widely used on RAID Controllers, SAS HBAs, Storage Backplanes, and Enterprise Servers.

36-pin connector
4 SAS lanes
Supports SAS and SATA devices
Common in SAS 6G and SAS 12G systems

A single SFF-8087 connector can carry four SAS/SATA channels through one compact cable connection.

What Is SFF-8643?

SFF-8643, also known as Mini SAS HD, is the next-generation internal SAS connector designed for higher density storage platforms.

Smaller footprint
Better signal integrity
Improved airflow
Designed for SAS 12Gb/s environments
Higher port density than SFF-8087

SFF-8087 vs SFF-8643

Feature	SFF-8087	SFF-8643
Connector Type	Mini SAS	Mini SAS HD
Pin Count	36 Pin	36 Pin
SAS Generation	SAS 6G / 12G	SAS 12G
Density	Standard	High Density
Signal Integrity	Good	Better
Airflow Optimization	Standard	Improved
Modern Server Adoption	Legacy/Common	Current Standard

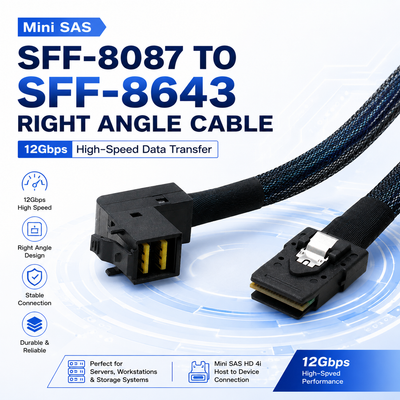

Typical SFF-8087 to SFF-8643 Connection

RAID Card (SFF-8087)
│
│ SFF-8087 to SFF-8643 Cable
│
Storage Backplane (SFF-8643)
│
├── SAS SSD
├── SAS HDD
├── SATA SSD
└── SATA HDD

Common Applications

Enterprise Servers – Connect RAID controllers to SAS backplanes for large-scale storage deployment.

AI Storage Systems – Provide reliable high-speed data connectivity for GPU and NVMe storage clusters.

NAS Systems – Used in TrueNAS, Unraid, and enterprise NAS environments.

Data Centers – Support scalable storage architectures with high drive density and efficient cable management.

Benefits of Upgrading to SFF-8643

Higher Density
Better Airflow
Improved Signal Quality
Future-Proof Infrastructure

Selecting the Right SFF-8087 to SFF-8643 Cable

SAS generation compatibility
Cable length
Wire gauge (30AWG or better)
Server chassis layout
Backplane interface type
RAID controller compatibility

Conclusion

SFF-8087 to SFF-8643 cables provide a practical bridge between legacy RAID controllers and modern SAS backplanes. Whether upgrading a storage server, building a NAS appliance, or deploying a data center infrastructure, understanding these two interfaces helps ensure reliable performance and future scalability.
